Avidyne IFD-540 and IFD-440 Nav/Com/GPS

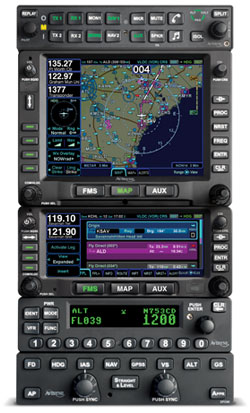

Avidyne IFD540/IFD440 Stack

A Plug n Play Upgrade for the GNS530 (IFD-540) and for the GNS430 (IFD440)









  • Overview
  • Hybrid Touch
  • Navigation Information
  • Powerful
  • Specifications
  • IFD 540 Video

IFD540 & IFD440 Touch Screen FMS/GPS/NAV/COMs

Avidyne’s IFD-Series FMS/GPS/NAV/COMs combine the best Flight Management System available, with multi-channel digital VHF radios, and easy-to-use, plug & play designs.

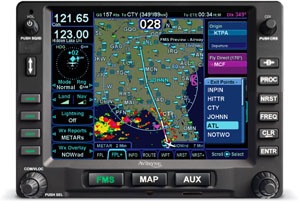

Avidyne IFD540 Touch Screen GPS

Evolution of the World’s Best Flight Management Technology

Avidyne’s leadership in easy-to-use avionics takes the next step forward with the introduction of the IFD-Series FMS/GPS/NAV/COMs. As the newest members of Avidyne’s integrated flight display family, the IFD540 & IFD440 provide the same powerful navigation, communication, and multi-function display capability as found in our award-winning Entegra Release 9 systems in a touch screen, panel-mounted avionics form-factor.

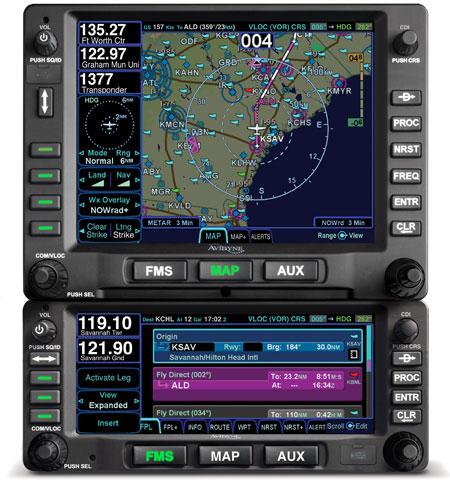

Plug & Play Replacement for your Old 530 & 430 Navigators

IFD540 replace Garmin 530The IFD540 & IFD440 are designed as plug & play replacements for the popular GNS530 & GNS430 navigators respectively, but with bigger glass, a much larger screen area, and a much easier to use hybrid touch screen interface. And because they're the same physical size, they use the same tray & antennas, and can be installed with no wiring changes, (if previously installed correctly) it makes it an incredibly easy and affordable retrofit for general aviation aircraft.

Avidyne Panel Mounted Avionics







Built on a dual databus architecture, the IFD540 and IFD440 are key components in Avidyne's new panel-mounted avionics suite, which also includes the AMX240 Audio Panel and AXP340 ADS-B Extended Squitter Mode S Transponder.
















IFD540 & IFD440 Touch Screen FMS/GPS/NAV/COMs

Avidyne’s IFD-Series FMS/GPS/NAV/COMs combine the best Flight Management System available, with multi-channel digital VHF radios, and easy-to-use, plug & play designs.

The Power of Hybrid Touch

Avidyne IFD540 Touch Screen GPS

Hybrid Touch means virtually all functions performed via the touch-screen can also be accomplished with the knobs/buttons, except pinch-zoom, map panning, and graphical flight plan editing. Hybrid Touch gives you the choice.

The Easy Choice

Over the years, pilots have chosen Avidyne for our MFDs, PFDs, and safety sensors because we design great avionics products that make flying safer and more fun. It’s no secret that ‘Ease of Use’ is truly the hallmark of all Avidyne products, and now with the IFD540 & IFD440, Avidyne is setting a new standard in easy user interface for FMS/GPS/NAV/COMs.

Advancements in touch screen technology have enabled the design team at Avidyne—virtually all of whom are pilots—to optimize our user interface for the new IFD Series. The powerful new MultiTouch interface allows pilots to gesture using two fingers on the capacitive touch screens to easily scroll and zoom the map range setting in and out. In addition to touch screen, we have maintained familiar knob and button controls. This 'Hybrid Touch' user interface provides pilots the choice when interacting with the IFDs for such functions as flight planning, map control, and frequency management.

Leveraging the highly-intuitive Page & Tab user interface of our Entegra Release 9 system, the IFDs provide plainly-labeled tabs, bi-directional keys, on-screen touch-sensitive labels, and a flat menu structure that makes it much easier to access the information you want when you want it.

The IFD-Series represents the next generation in FMS/GPS/NAV/COM systems, and is capable of providing precision position information to support ADS-B as part of the NextGen airspace initiative.

When it comes to panel-mounted avionics, you now have a choice and the choice is easy. Avidyne.

Avidyne IFD540 Touch Screen GPS

Making Flying Simpler

Featuring a super bright high-resolution LED-backlit 5.7-inch (IFD540) and 4.8-inch (IFD440) diagonal color liquid crystal MultiTouch touch-screen display, the IFDs provide a simple user interface for full SBAS/LPV approach guidance capability, FMS Vectors™, advanced radio management including automated NAV frequency tuning and COM frequency nomination, automatic frequency identification, easy-to-modify graphical flight planning, and Avidyne’s exclusive GeoFill™ waypoint nomination.

Avidyne IFD540 Touch Screen GPS

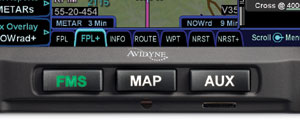

Versatile dual-sided Line Select Keys provide easy control of the thumbnail Hazard Display and map overlay settings. Dual-concentric knobs, dedicated function buttons, and a highly-intuitive touch-sensitive display combine to give pilots a datalink-enabled, map-centric view of their flight situation, while providing quick access to all of the IFD’s powerful functions.






Hybrid Touch - It’s Your Choice

In addition to the dedicated knobs and buttons that many pilots prefer for frequent pilot actions, the IFD's Hybrid Touch capability allows pilots to perform virtually all of those same functions via the touch-screen interface, as well as providing additional MultiTouch functionality like pinch-zoom map panning and graphical flight plan editing.

Avidyne IFD540 Touch Screen GPS

Just as you can use the Page & Tab rocker switches to move between tabs, touching any of the tabs along the bottom of the screen allows you to jump directly to any of the available tabs in a single action, making operation even simpler.

Avidyne IFD540 Touch Screen GPS

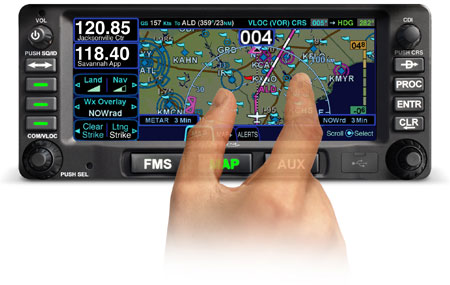

Touching any of the symbols on the IFDs map brings up a data box with all pertinent information including data on special use airspace, airports, VORs, NDBs, weather, etc.




IFD540 & IFD440 Touch Screen FMS/GPS/NAV/COMs

Avidyne’s IFD-Series FMS/GPS/NAV/COMs combine the best Flight Management System available, with multi-channel digital VHF radios, and easy-to-use, plug & play designs.

Navigation made simple.

Avidyne IFD540 Touch Screen GPS

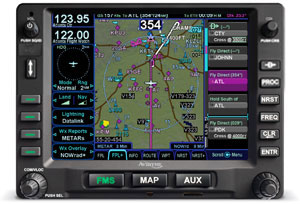

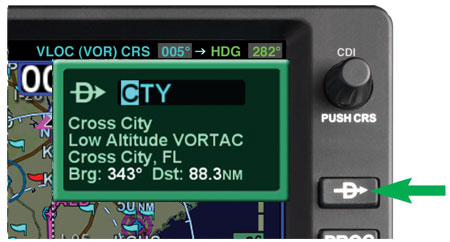

Easy Direct-To Navigation

Avidyne IFD540 Touch Screen GPS

For many flights, Direct-To provides the easiest and most efficient way to navigate to your destination or to a given waypoint. The IFDs provide Direct-To operation that will be familiar to anyone flying with previous generation GPS navigators, except now you also have the option of touch screen data entry.




Flight Planning Made Simple

Avidyne IFD540 Touch Screen GPSIn addition to basic Direct-To navigation, entering an IFR flight plan is easier than ever with the IFD-Series. Extensive testing and customer experience have proven that the IFDs user interface reduces button pushes and knob twists required with previous navigators by 50%-75% or more. Drop-down menus are logically placed to provide touch-to-select data entry of airways, exit waypoints, destinations, and approach procedures.

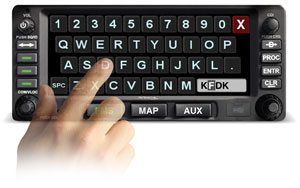

Avidyne IFD540 Touch Screen GPSA pop-up QWERTY-style keyboard automatically appears when an alpha-numeric data field is highlighted, making data entry as familiar to you as your computer or smart phone. With GeoFill, the IFDs will virtually always guess accurately your next waypoint after only entering one or two letters.





Graphical Flight Plan Editing

Avidyne IFD540 Touch Screen GPS

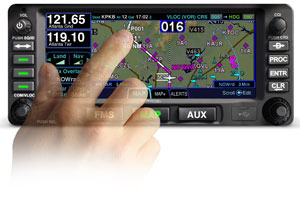

With the IFD’s graphical flight planning capability, you can easily edit your flight plan with the touch of the screen. The IFD’s ‘rubber banding,’ feature allows you
to stretch any leg in the flight plan to make a deviation for weather or to accommodate an amendment from ATC.





FMS Preview™

Avidyne IFD540 Touch Screen GPSAvidyne’s exclusive FMS Preview™ is a powerful flight planning feature that makes it even more intuitive to load flight plans by showing you a real-time graphical depiction of each proposed modification in cyan prior to selection. FMS Preview makes it easy to visualize before selecting a desired waypoint, airway, hold or hold geometry, Direct-To, approach, approach transition and any other terminal procedures. In dual IFD installations, the dual-databus architecture allows pilots to enter the flightplan on one IFD while seeing the FMS Preview on the other.

Easy Loading of Approaches

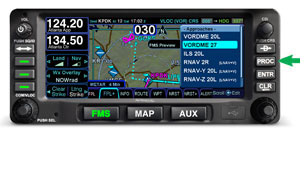

The dedicated PROC (Procedure) button allows you to quickly load approaches at your destination airport by selecting from the pop-up list. FMS Preview allows you to view each of the available approaches graphically prior to selection. Unlike previous-generation navigators, the IFDs allows you to quickly load any destination airports and multiple approaches into your flight plan.

Avidyne IFD540

FMSVectors™ - Fly the Magenta Line

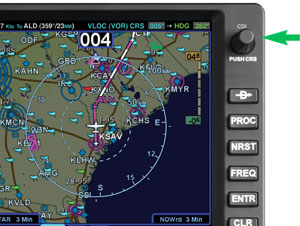

The unique Nav Source knob in the upper right corner allows you to select between GPS, VLOC (i.e. VHF NAV), or HDG as the output signal source from the IFDs to the moving map and to some autopilots. It is also used to slew and sync the course or heading.

GPS is the standard operating mode, providing roll steering commands to the autopilot, and VLOC is used when flying a VOR or ILS/Localizer. Heading mode (HDG), also known as FMS Vectors, is Avidyne’s powerful new guidance tool for GPS/FMS navigation.

In legacy navigators the Vectors-to-Final approach transition was a separate procedure that the pilot performed by suspending the flight plan sequencing. With the IFD-Series, the pilot remains flying the FMS while getting ATC vectors for the final. This is achieved by adjusting the Nav Source Heading with the autopilot remaining coupled to the FMS the whole time. The FMS uses this pilot-set heading and presents a dashed magenta line on the map that is the projected ground track compensated for winds. With this vectors line and the FMS, you can clearly visualize the final approach course and how the aircraft is going to intercept it. This line is drawn as a curved intercept to final if you are "Armed" to intercept and it is only a single button press to Disarm or Arm Intercept according to whether ATC has given approval to "intercept final" or not.

The easily-modified FMS Vectors line gives the pilot GPS/FMS guidance for the entire route of flight, from 200 AGL at departure to 200 AGL at arrival, without the need to suspend or interrupt guidance to the autopilot, enhancing safety and eliminating “modes’ confusion.

The pilot simply “flies the magenta line” all the time.


IFD540 & IFD440 Touch Screen FMS/GPS/NAV/COMs

Avidyne’s IFD-Series FMS/GPS/NAV/COMs combine the best Flight Management System available, with multi-channel digital VHF radios, and easy-to-use, plug & play designs.

Powerful, yet simple.

Avidyne IFD540 Touch Screen GPS

Easy Radio Tuning

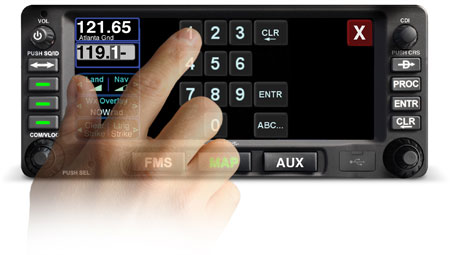

Managing your radios is easy with the IFD540. A numeric keypad automatically appears when editing a COM or NAV frequency. The IFD540’s quick-entry capability minimizes keystrokes by reducing the number of button pushes required. As an example, to enter the frequency 123.50, you need only enter 235. The leading one is always assumed, and it will auto fill the trailing zero for you.

The IFD540 is capable of simultaneously tuning both the active and standby frequencies, both of which can be easily monitored when coupled with Avidyne’s AMX240 Audio Panel.

The IFD540’s powerful FMS automatically nominates, auto-tunes, identifies, and monitors the NAV radio frequencies, so you may never have to tune another VOR or ILS frequency again! Should you choose to do so, manual tuning is easily completed with the pop-up numeric key pad or by simply typing the identifier for the VOR.

Station Readout

Avidyne IFD540 Touch Screen GPS

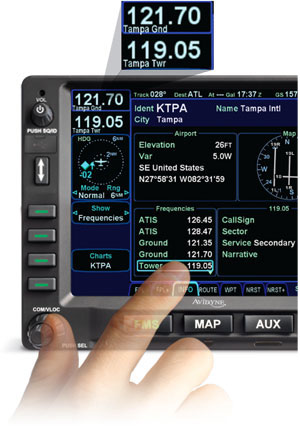

The IFD540 decodes the active and standby frequencies based on proximity in the database, and display the names of the stations in plain English, providing a handy reminder of the agency to which you will be transmitting when pressing the push-to-talk button.


Avidyne IFD540 Touch Screen GPS



Making Radio Tuning Even Easier



The preferred tuning method is by using the Frequency (FREQ) button. Pressing the Frequency button provides a list of the most likely frequencies you will need based on your current location in your flight plan.  When close to your origin it will nominate the origin frequencies, when enroute it will provide the most likely center and flight service frequencies and when near your destination those frequencies will be provided for easy nomination. In fact, any frequency that is displayed can be touch-nominated to your radios.











Avidyne IFD540 Touch Screen GPS

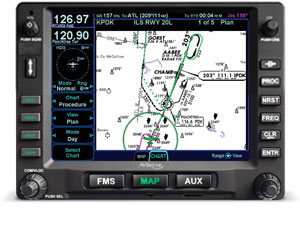

Electronic Approach Charts & Airport Diagrams

The IFD540 includes CMax™ Approach Charts & Airport Diagrams. Utilizing Jeppesen’s Jeppview® charts subscription services, CMax provides Worldwide approach charts and a database of over 6,000 airport diagrams, most of which are geo-referenced, allowing for the display of your ownship and flight plan position right on the chart or airport diagram.




Avidyne IFD540 Touch Screen GPSTouch the Chart icon in the flight plan to automatically load and view the appropriate approach plates and airport diagrams.



Easy NEAREST Function

Avidyne IFD540 Touch Screen GPSCycling through the NRST button provides easy access to a full list of airports nearest to your present position and airports nearest to your destination, along with nearest VORs, NDBs, Intersections, ARTCC, and Flight Service Stations (FSS). Frequencies can be loaded into the radio standby window with a single touch. Color METAR flags show a graphical presentation of the weather at each reporting airport.

Avidyne IFD540 Touch Screen GPS


Terrain Awareness & Alerting

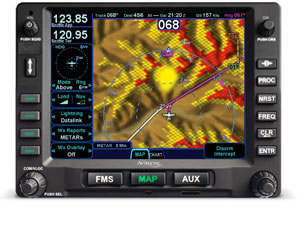

The IFD540 includes Terrain Awareness and Alerting which can be displayed over the color-contoured terrain base map for easy pilot recognition of an imminent encounter with nearby terrain.





Avidyne IFD540 Touch Screen GPSTAWS-B Option

In addition to its standard Terrain Alerting capability, the IFD540 also offers an affordable option for TAWS-B, which is mandated for business jets and turboprops with six or more passenger seats. It’s Forward Looking Terrain Alerting (FLTA) capability provides a solid yellow or red impact point based on flight path projection. Caution Alerts are provided when a collision with terrain is projected within approximately 60 seconds, and Warning Alerts are provided for terrain projected within approximately 30 seconds. FLTA provides aural alert messaging as well.



Physical and Performance:
Unit dimensions, WxHxD (IFD540): 6.30"W x 4.60"H x 11.00"D (16 x 11.7 x 27.5 cm) behind panel including connectors
Unit dimensions, WxHxD (IFD440): 6.25"W x 2.65"H x 11.00"D (16 x 6.73 x 27.5 cm) behind panel including connectors
Weight (IFD540): 6.60 lbs (2.99kg) including rack & connector
Power Requirements: 11-33 volts
Display (IFD540): 5.7” Diagonal w/Touch Screen
Full VGA - 640 x 480 pixels
65,535 colors
Ultrabright sunlight readable w/LED Backlighting
Display (IFD440): 4.8” Diagonal w/Touch Screen
640 x 235 pixels
65,535 colors
Ultrabright sunlight readable w/LED Backlighting
Other Features:
Environmental: DO 160E
To 50,000 ft.
-20C to +55C Operating
+70C Short Term
Warranty: 2 Years parts & labor included
FlexCare™ extended warranty service available
Applicable TSO's: TSO-C34e ILS Glide Slope Receiving Equipment
TSO-C36e Airborne ILS Localizer Receiving Equipment
TSO-C40c VOR Receiving Equipment
TSO-C110a Airborne Passive Thunderstorm Detection
TSO-C113 Airborne Multipurpose Electronic Display
TSO-C118 Traffic Alert & Collision Avoidance (TCAS)
TSO-C146c Stand-Alone Airborne Navigation Equipment Using GPS, Class 1, 2, 3 (LPV)
TSO-C147 Traffic Advisory System (TAS)
TSO-C151b Class B TAWS (Optional)
TSO-C157 Flight Information System -Broadcast (FIS-B)
TSO-C165 Electronic Map Display
TSO-C169a VHF Radio Transceiver Equipment

Go to top of page

Multi-channel VHF Voice/Data Transceiver: 10 Watt transmitter (Class 3, 5)
- Optional 16 Watt (28VDC Only)
Capable of simultaneous reception of up to four channels, voice or data 8.33KHZ or 25KHZ Operation (Class C, E) including offset carrier
118.000 MHZ to 136.975 MHZ operation
GPS: 16-Channel GPS/SBAS Receivers
1,000 user-defined Waypoints
99 Flight plans, Up to 128 waypoints each
RTCA DO-178B and DO-254 Level B
RTCA DO-160E
Meets DO-229D, Beta Class 3
Accuracy:
-Autonomous Position
• 3 meters (CEP 50%)
• 5 meters (95%)
-SBAS Differential Position
• 1 meter (CEP)
• 3 meters (95%)
-Velocity Accuracy 0.1 knots (95%)
Dynamics:
Acceleration - 10g max.
Speed - 1,000 knots
Altitude - 50,000 ft

Go to top of page

VOR Receiver: Flag sensitivity Set to –103dBm (Actual sensitivity exceeds –107dBm)
108.0 MHZ to 117.95 MHZ operation
Meets RTCA DO-196 requirements
CDI output: ±150 mV full scale
DME channeling: 2x5, BCD, Slip Code Narco 890/891, King Serial
Audio sensitivity: –103.5 dBm for 6 dB S/N with 1 kHz 30% mod.
Audio output: 100 mW minimum into 500 ohm load; external amplifier required
VHF Localizer Receiver: Flag sensitivity set to –101dBm (Actual sensitivity exceeds –107dBm)
108.1 MHZ to 111.95 MHZ operation
Meets RTCA DO-195 requirements
CDI output: ±150 mV full scale
Centering accuracy: < 4.5 mV
Flag sensitivity: –103.5 dBm
Audio sensitivity: –103.5 dBm for 6 dB S/N with 1 kHz 30% mod.
Audio output: 100 mW minimum into 500 ohm load; external amplifier required to drive cockpit speaker
UHF Glideslope Receiver: Flag Sensitivity Set to –86dBm (Actual Sensitivity Exceeds –107dBm)
329.15 MHZ to 335.00 MHZ operation
Meets RTCA DO-192 requirements
CDI output: ±150 mV full scale
Centering accuracy: 0 ddm ± .0091 ddm
Functionality:
Satellite Datalink Weather Interface: Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
– Using WSI InFlight® Aviation Weather & SIRIUS® Satellite Radio
Garmin GDL69/A Broadcast Datalink Receiver
– Using Baron Services Weather & XM Satellite Radio
Electronic Approach Charts & Airport Diagrams (IFD540 only): CMax™ – Jeppesen Electronic Airway Manual Charts
Lightning Interface: Avidyne TWX670 Tactical Lightning Detection
L3 WX-500 Stormscope® Weather Mapping Sensor
Traffic Interface: Avidyne TAS600/605/610/615/620/A TAS
Ryan 9900B/BX TAS
Honeywell KTA870/KMH880 TAS/IHAS
L3 Skywatch 497 / HP TAS
Garmin GTS800/820 TAS
Honeywell CAS66A TCAS I
L3 791 TCAS I
Garmin GTS850 TCAS I
ADS-B Interface: Avidyne TAS600A/TAS605A/TAS615A/ TAS620A (Traffic)
Garmin GTS800/820 (Traffic)
Terrain Awareness (IFD540 only): Color-Contoured Terrain Base Map Built in
– Americas Terrain & US Obstacle Data
– International Terrain Data – Optional
– Integrated Class B TAWS
– Optional
406 ELT Interface: Aviation RS-232
NMEA 0183

Go to top of page


See what the IFD540/440 can do for you!
