Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote.

The FD151CV-LP utilizes a state of the art digital video decoding chipset for the analog video input. The video sources in order of picture quality are VGA (computer graphics like moving maps), and Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.

The FD151CV-LP can also be connected to existing video switchers and just take a composite video input from a selector interface box. In this case multiple input sources can be selected and displayed on the monitor. You would only use the IR remote to set up the screen during installation.

The FD151CV-LP is made of all metal components. DO-160 testing has been completed and is available upon request.

The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD.

• Built for retrofit installation with a compact metal enclosure for increased flexibility
• No expensive switching required, three inputs included
• VGA for the Flight Display Moving Map and computer graphics
• 2 composite inputs for DVD, Glareshield camera and more
• Controls on unit or use the included IR remote to switch video source, adjust preferences, etc.
• Extremely wide viewing angle allows multiple passengers to watch the same monitor
• Anti glare, scratch resistant Lexan enhances viewing experience andprotectsthe LCD
• Crystal clear LCD with industry leading brightness

System Specifications

Dimensions	14.14”(W) x 11.95”(H) x 1.1”(D)
Weight	5 lbs 14 oz
Power	28V@1.5A
PC Input	VGA (High Density DB-15 Connector)
Video Input	2 Composite
Video Type Supported	NTSC/PAL
Screen Control	On-Screen Display Menu
Remote Control	IR, included
Display Size	11.89”(W) x 8.91”(H)
Display Type	15.1” TFT Color LCD
Display Color	16.7 Million
Brightness	400 cd/m2
Supported Resolution	XGA 1024x768
Pixel Pitch	0.297 mm
Materials	Aluminum
DO-160 TESTED	FAA/PMA approved

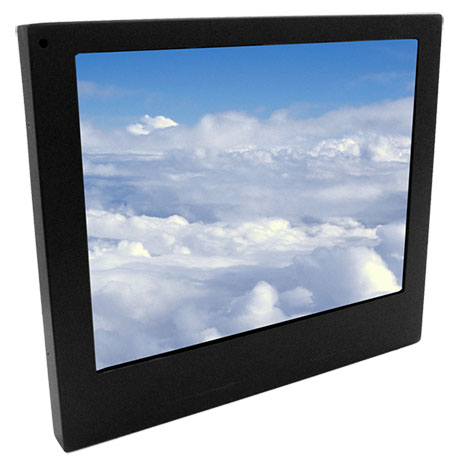

An enlarged view of the FD151CV-LP 15.1" Monitor

Flight Display discusses the FD151CV-LP display.
