Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote.

The FD171CV utilizes a state of the art digital video decoding chipset for the analog video input. The three video sources in order of picture quality are VGA (computer graphics like moving maps), S-Video and Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.

The FD171CV can also be connected to existing video switchers and just take a composite video input from a selector interface box. In this case multiple input sources can be selected and displayed on the monitor. You would only use the IR remote to set up the screen during installation.

The FD171CV is made of all metal components. DO-160 testing has been completed and is available upon request.

The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD.

Perfect for watching movies the way they were meant to be seen in the original widescreen format

• Built for retrofit installation with a compact metal enclosure for increased flexibility
• No expensive switching required, three inputs included
• VGA for the Flight Display Moving Map and computer graphics
• 1 composite/1 S-Video input for DVD, Glareshield camera and more
• Button controls on unit or use the included IR remote to switch video source, adjust settings, etc.
• Extremely wide viewing angle allows multiple passengers to watch the same monitor
• Anti glare, scratch resistant Lexan enhances viewing experience andprotectsthe LCD
• Crystal clear LCD with industry leading brightness

System Specifications

Dimensions	16.25”(W) x 11”(H) x 1.75”(D)
Weight	7.6 lbs
Power	28V@3.0A
PC Input	VGA (High Density DB-15 Connector)
Video Input	S-Video, Composite
Video Type Supported	NTSC/PAL
Screen Control	On-Screen Display Menu
Remote Control	IR, included
Display Size	14.360” x 8.950”
Display Type	17.1” TFT Color LCD
Display Color	16.7 Million
Brightness	250 cd/m2
Screen Resolution	1920 x 1080
Materials	Aluminum
DO-160 TESTED	FAA/PMA approved

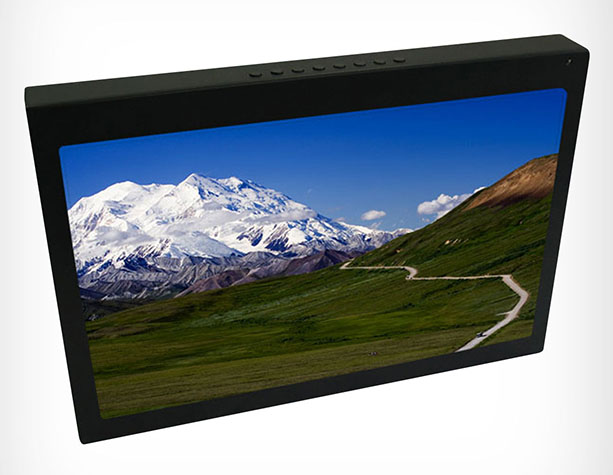

An enlarged view of the FD171CV 17.1" Monitor
