Description

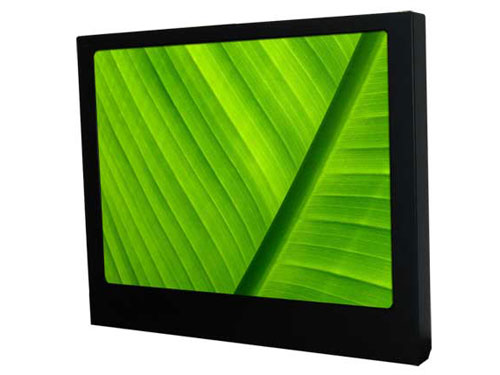

The FD201CV-LP Ver HD utilizes a state of the art digital video decoding chipset for the analog video input. There are FIVE video source inputs available. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.

The FD201CV-LP Ver HD can also be connected to existing video switchers and use only a composite video input from a selector interface box. In this case, the IR remote will only be used to set up the screen after installation. e.g. adjust brightness, contrast, etc.

The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD and reduce glare. The FD201CV-LP Ver HD is made of all metal components. DO-160 testing has been completed and is available upon request.

System Specifications

Monitor Overall Size	18.00”(W) x 15.13”(H) x 1.65”(D)
Weight	12 lbs. 9 oz.
Power Consumption	28VDC @ 3.0 AMPS
PC & Video Input	VGA (High Density DB-15 Connector), S-Video, Composite, HDMI (2)
Enclosure Materials	Aluminum
Screen Resolution	1600x1200 UGA
Brightness	450 cd/m²
Display Size	16.1”(W) x 12.1”(H)
Viewing Angle	176º on Both Axis
