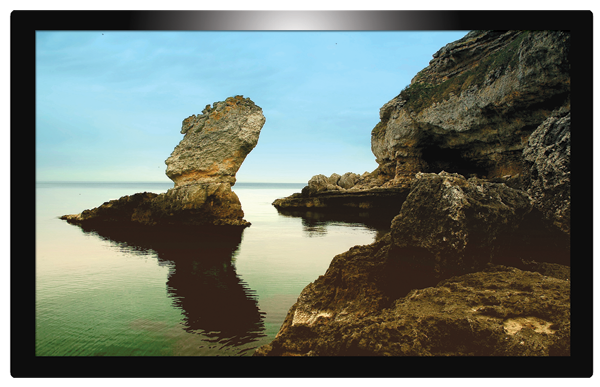

Flight Display Systems FD260 CV Ver HD Widescreen Display

Flight Display Systems FD220 CV Ver HD Widescreen Display


Part Number:
FD260CV Ver HD

  • Overview
  • Specifications
  • Image
  • HD Display Knowledge Base
  • FD260CV HD Display Video


The FD260CV Ver HD includes FIVE video source inputs. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.

The LCD is protected with a .125” thick sheet of Lexan. The purpose of this lens is to prevent scratching of the LCD and reduce glare. The FD260CV Ver HD is made of all metal components. DO-160 testing has been completed and is available upon request.

System Specifications

Monitor Overall Size 25.10”(W) x 15.65”(H) x 2.15”(D)
Weight 17 lbs 6 oz
Power Consumption 28VDC @ 2.2 Amps
PC Input VGA (Analog RGB – 15 Pin D-Sub)
Video Inputs 1 x VGA, 1 x S-Video, 1 x Composite, 2 x HDMI
Enclosure Materials Aluminum
Screen Resolution 1920 x 1080 pixels
Brightness 400 cd/m²
Display Size 22.7” (W) x 12.78” (H)
Viewing Angle 178º on both axis

The FD260CV can bring your entertainment
experience to life!

Flight Display Systems FD260CV HD Display

Flight Display Systems discusses HD and how it works.

Flight Display Systems discusses the FD260CV HD Widescreen Display.
