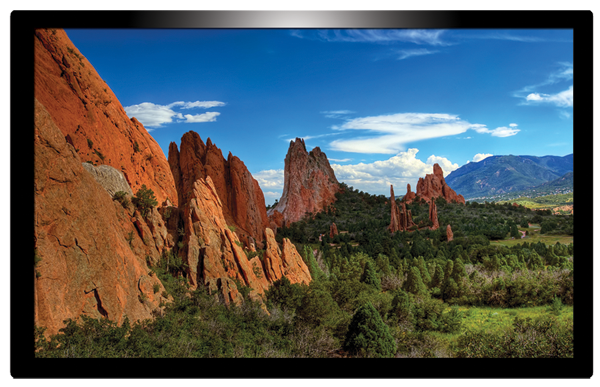

Flight Display Systems FD320 CV Ver HD Widescreen Display
Part Number: | FD320CV Ver HD |
||
- Overview
- Specifications
- Image
- HD Display Knowledge Base
Description
The FD320CV Ver HD utilizes a state of the art digital video decoding chipset for the analog video input. There are FIVE video source inputs available. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.
The FD320CV Ver HD can also be connected to existing video switchers and use only a composite video input from a selector interface box. In this case, the IR remote will only be used to set up the screen after installation. E.g. adjust brightness, contrast, etc.
The LCD is protected with a .125” Lexan lens. The purpose of this lens is to prevent scratching of the LCD and reduce glare. The FD320CV Ver HD is made of all metal components. DO-160 testing has been completed and is available upon request.
