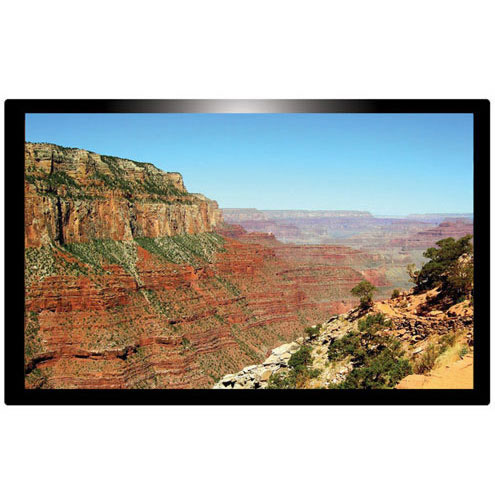

Flight Display Systems FD420 CV Ver HD Widescreen Display

Flight Display Systems FD220 CV Ver HD Widescreen Display


Part Number:
FD420CV Ver HD

  • Overview
  • Specifications
  • Image
  • HD Display Knowledge Base


The FD260CV Ver HD includes FIVE video source inputs. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected.

The LCD is protected with a .125” thick sheet of Lexan. The purpose of this lens is to prevent scratching of the LCD and reduce glare. The FD260CV Ver HD is made of all metal components. DO-160 testing has been completed and is available upon request.

System Specifications

Monitor Overall Size 25.10”(W) x 15.65”(H) x 2.15”(D)
Weight 17 lbs 6 oz
Power Consumption 28VDC @ 2.2 Amps
PC Input VGA (Analog RGB – 15 Pin D-Sub)
Video Inputs 1 x VGA, 1 x S-Video, 1 x Composite, 2 x HDMI
Enclosure Materials Aluminum
Screen Resolution 1920 x 1080 pixels
Brightness 400 cd/m²
Display Size 22.7” (W) x 12.78” (H)
Viewing Angle 178º on both axis

The FD420CV can bring your entertainment
experience to life!
