Flight Display Systems FD70CV-M 7" Widescreen Display

Flight Display Systems FD70CV-M 7" Widescreen Display





  • Overview
  • Specifications
  • Image
  • FD70CV 7" Widescreen Video

This unit is ideal in situations where bulkhead space forward and aft is very limited. This unit is a full function 7-inch LCD housed in a metal case that will fit on most aircraft. The metal case makes it easy to mount directly to the bulkhead or build the units into the cabinet wall. Mounting holes are easily accessible on both sides of the unit.

  • Built for retrofit installation with a compact metal enclosure for increased flexibility
  • No expensive switching required, three inputs included
  • VGA for the Flight Display Moving Map and computer graphics
  • 2 composite inputs for DVD, Glareshield camera, and more
  • Controls on unit or use the included IR remote to switch video source, adjust preferences, etc
  • Extremely wide viewing angle allows multiple passengers to watch the same monitor
  • Crystal clear LCD with industry leading brightness

System Specifications

Dimensions 6.8” (W) x 4.75” (H) x 1.20” (D)
Weight 1 lb 5 oz
Power 12 - 28V @ .6Amps - .3Amps
Operating Temperature 0-50° C (32-122° F)
PC Input VGA (Analog RGB 15 pin D-sub)
Video Input 2 Composite Video
Screen Control On-Screen Display Menu
Remote Control IR, included
Display Size 6.00”(W) x 3.60”(H)
Display Resolution WVGA 800x480
Supported Resolutions 640x480 - 1024x768
Aspect Ratio 16:9 Widescreen
Display Type 7” TFT Color LCD
Brightness 450 cd/m2
DO-160 TESTED FAA/PMA Approved

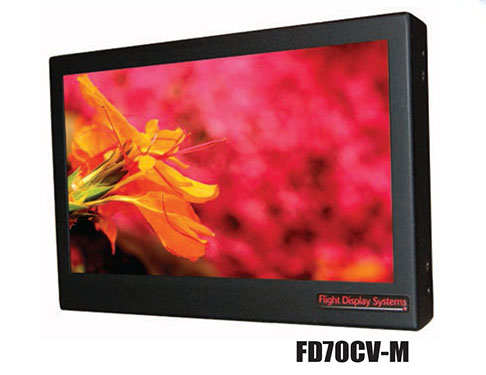

An enlarged view of the FD70CV 7" Monitor

Flight Display Systems FD70CV 7" Display

Flight Display Systems discusses the FD70CV display.
