Built with retrofit aircraft integration in mind, this display can switch between three video input sources via the bezel buttons or the Infrared Remote. It is perfect for cabin video and graphical entertainment. The FD70CV-V has features that allow installation in the smallest of mounting areas with the minimum of interface equipment.

The 7” Widescreen LED utilizes a state of the art digital video decoding chipset for the analog video input. The three video sources in order of picture quality are VGA (computer graphics, like Moving Maps), and two (2x) Composite Video (DVD, Camera or VCR). Both NTSC and PAL formats are auto-detected.

The FD70CV-V can also be connected to existing video switchers and can take a composite video input from a selector interface box. In this case, multiple input sources can be selected and displayed on the monitor.

• Built for retrofit installation with a compact enclosure for increased flexibility
• No expensive switching required, three inputs included
• VGA for the Flight Display Moving Map and computer graphics
• 2 composite inputs for DVD, Glareshield camera, and more
• Controls on unit or use the included IR remote to switch video source, adjust preferences, etc.
• Extremely wide viewing angle allows multiple passengers to watch the same monitor
• Crystal clear LED with industry leading brightness

System Specifications

Dimensions	7.72” (W) x 4.88”(H) x 1.42”(D)
Weight with Base	1 lb 54 oz
Power	12 - 28V @.8Amps - .4Amps
Video Input	2 Composite Video
Screen Control	On-Screen Display Menu
Video Type	NTSC/PAL
Display Size	6.00” (W) x 3.60” (H)
Display Resolution	WVGA 800x480
Supported Resolutions	640x480 - 1600x1200
Aspect Ratio	16:9 Widescreen
Display Type	7” TFT LED Backlight
Brightness	500 cd/m2
DO-160 TESTED	FAA/PMA Approved

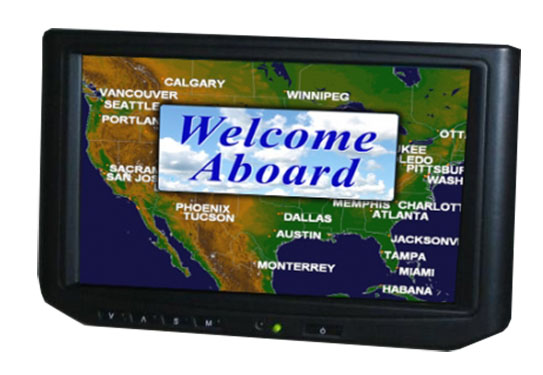

An enlarged view of the FD70CV-V 7" Monitor
