Flight Display Systems FD800 Jet Juke Box

Flight Display Systems FD800 Jet Juke Box





  • Overview
  • Specifications
  • Image
  • Jet Juke Box Video

The JetJukeBox allows users to watch movies, listen to music, or view pictures in flight without leaving their seat to change a disc. The large, internal memory can store all your entertainment, removing the need to carry a bulky library of DVDs and CDs that are prone to being lost or scratched. 500GB of memory is large enough to store 100 full length movies.

  • Store Movies,TV Shows, Pictures, and Safety Briefingsfor easy in-flight use
  • Supports the latest high bitrate video formats to provide up to 1080i high-definition videos
  • CAN Bus interface to Flight Display Systems Select Cabin Management System
  • Easy to use on-screen menus controlled by included remote or on panel of Select CMS allow user to select movies, music, pictures, or slideshow and scroll through list of selections
  • Unique slideshow with music for company customer presentations of products, faciities, or passenger information
  • *Removable from aircraft docking station for loading media in your office or home. Cables and hardware for out of aircraft operation included
  • Simple set-up and operation, no software needed
  • Connect to PC or MAC
  • Several languages available for menus

System Specifications

Video Formats MPEG1/2/4, ISO
Audio Formats MP3, 4DIF,ADTS,O.G.G.,WMA
Photo Formats JPEG, BMP, PNG,GIF Download via USB 2.0
Dimensions 6.35”(W) x 1.95”(H) x 8.57”(D)
Weight 3 lbs
HDMI Video Output Resolution 720p, 1080i
Composite Video Output Resolution NTSC
AC Home Power Adapter Included
Power 28VDC@1Amp
Remote Control IR, included
Output HDMI with 1080i, Composite Video, Audio 2-channels, Controls through RS - 485 and CAN Bus
DO-160 TESTED FAA/PMA Approved

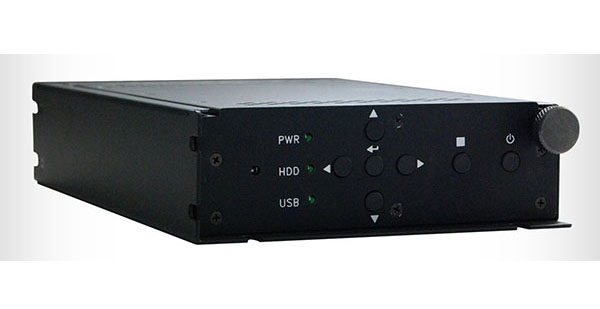

An enlarged view of the Jet Juke Box

Flight Display Systems FDVGA-SDI Converter
Flight Display Systems FD800 Jet Juke Box Flight Display Systems FD800 Jet Juke Box Menu

Pick an image above to view a larger image.

Flight Display Systems discusses the Jet Juke Box.
