Description

The FD932DVD-LP-2 must be controlled with the included remote. Navigate by utilizing the direction arrows.

The FD932DVD-LP-2 reads MP3, JPG and GIF files. The unit does not charge UNLESS the player is in USB mode. It will not automatically charge by plugging in the USB cord. The FD932DVD-LP-2 cannot play a DVD while the device is charging thru USB. The USB port only charges an Apple device and reads music, video and pictures from a thumb drive. It is necessary to note that it will read the entire contents of the file before opening a window. This window will display all folders on the left and the folder contents will be displayed on the right.

The FD932DVD-LP-2 will always play the first song upon starting. It does not recognize the last song played when turned off.

The SD card can read up to 2GB.

One of the smallest DVD players available for aircraft - less than an inch high!

• Compatible with DVD/CD/SVCD/VCD/MP3
• Back-lit front panel buttons
• USB/SD media player allows video and audio to be played using digital media
• 2 composite, NTSC/PAL outputs
• Full function remote control

System Specifications

Power	12VDC- 28VDC@.50 -.25AMPS
Video Signal	NTSC or PAL
Remote	1/16” jack for wired remote sensor Remote Control included
Output	(2) Composite x 2
Dimensions	7.160”(W) x 0.98”(H) x 7.09”(D)
Weight	2 lbs 8 oz
Supported Disc Formats	DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution	>500 lines, horizontal measurement

A Larger View of the FD932DVD DVD/CD/MP3 Player.

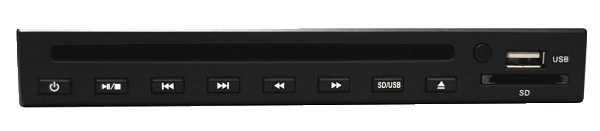

The Flight Display FD932DVD-LP-2 DVD/CD/MP3 Player.
