The FDSDIVCS-4-10 is a 4-input, 10-output HD-SDI video crosspoint switch. This hardware device simplifies video wiring by using 75 ohm coax to transmit HD video to onboard displays. Non-blocking switching permits a connection of any HD input to any HD output. Switching is controlled through CAN buss, RS485 bus, or momentary ground switch.

The FDSDIVCS-4-10 can be interfaced to the following Flight Display Systems components:

• All models of HD-SDI Monitors
• Composite to HD-SDI Converters
• VGA to HD-SDI Converters
• HDMI to HD-SDI Converters
• HD-SDI Cameras

System Specifications

Power	28V DC @ 1.0A steady state: 800mA
Control	CAN, RS485, Push Button Momentary Ground
Inputs	(4) HD-SDI
Outputs	(10) HD-SDI
Weight	TBD (approx. 2 lbs 2 oz)
Dimensions	4.78”(W) x 2.31”(H) x 5.82”(D)
Operating Temp	- 20° to 60° C

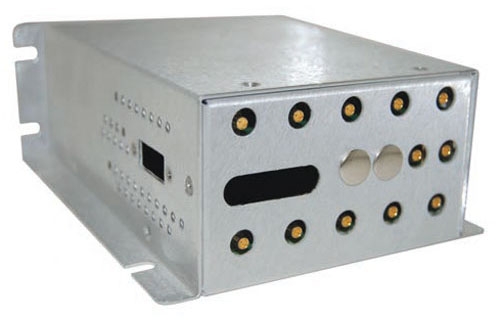

An enlarged view of the Crosspoint Switch
