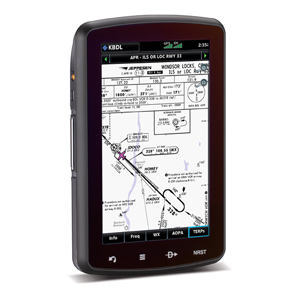

Garmin aera 795 Portable GPS

Garmin aera795
Part Number:
010-00967-00
Suggested Retail Price:
$ 1,899.00
Our Price:
$ 1,699.00





Premier Avionics is a
Garmin GTN750, GTN650 and G600/G500 Demo Dealer

  • Overview
  • Specifications
  • In the Box
  • Accessories
  • aera 796 Video

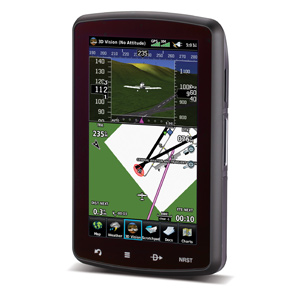

Experience 3-D navigation, advanced electronic flight bag capabilities and more with aera 795. Viewable in both portrait and landscape mode, the device’s 7” touchscreen puts a wealth of flight information right at your fingertips. aera795 GPS

See in Virtual 3-D

Revolutionary new 3D Vision technology shows a virtual 3-D behind-the-aircraft perspective of surrounding terrain derived from GPS and the onboard terrain database – a feature previously only available in our panel-mount avionics. Simply slide your finger across the touchscreen to rotate the view and show land and water features, obstacles, runways and airport signposts in relative proximity to the aircraft. Using its forward-looking terrain avoidance capability, aera 795 predicts in advance where towers or obstacles may exist and shades the landscape with amber or red overlays to indicate those areas. 3D Vision and other flight data are presented smoothly and continuously thanks to the device’s internal GPS that provides position updates 5 times per second (5 Hz).

aera 795’s bright 7" diagonal high-definition sunlight-readable display makes this detailed mapping easy to see in any lighting conditions and works in both portrait and landscape mode. The physical design has been optimized to fit on the yoke or for use as a knee-mounted device. There are only 4 touch keys on the bezel representing "Back", "Menu", "Direct-to" and "Nearest" for quick navigation to the most frequent used functions. All other functions are quickly accessed through Intuitive onscreen icons with labels. This unique touchscreen interface even allows you to quickly pan across the map screen and pinch to zoom.

aera 795

Go Paperless

aera 796 fullfills the role of either a Class I or Class II electronic flight bag, greatly reducing the need to rely on paper charts in the cockpit. Initial georeferenced VFR sectional and IRF enroute charts come preloaded that show your aircraft’s position overlaid directly on the relevant chart. When in IFR map mode, the 795 can display victor airways, jet routes, minimum enroute altitudes and leg distance, much like what’s found on traditional enroute charts. Initial georeferenced Garmin FliteCharts provide approach charts and airport diagrams for the U.S., while pilots who prefer Jeppesen charts and diagrams can use optional Garmin ChartView service, which utilizes Jeppesen’s extensive library to provide global georeferenced charting capabilities. aera 795 also includes a robust document viewer, so you can easily pull up weights and balances, flight manuals, raster charts or a wide range of electronically formatted materials you download to the device. A “scratch pad” feature also allows you to quickly jot down clearances and other pertinent notes while in route, while a checklist viewer allows you to create customized and interactive electronic checklists.

aera 795

Enhance Situational Awareness

aera 795’s built-in terrain and obstacle database not only shows contours in 3D Vision mode, but also allows for a top-down view of your entire route. To help you navigate around unfamiliar airports, SafeTaxi® provides detailed taxiway diagrams and position information for many U.S., European or Canadian airports, while a private airport and heliport database greatly expands your emergency “nearest” options. FBO, ground transportation, lodging and other facility information for most U.S. airports are also available through preloaded AOPA Airport Directory Data; international pilots may choose to opt for global
AC-U-KWIK airport directory data instead.

Expand Your Portable

Thanks to its 2 serial ports, aera 795 allows for simultaneous connectivity with other hardware. With an optional Garmin GTX 330 Mode S Transponder Interface, you can access Traffic Information Service (TIS) alerts, where available, right on the device while also sending frequencies to a Garmin SL30/40 radio or relaying position reports to other devices.

By adding optional City Navigator maps, both helicopter and fixed-wing pilots add street addresses as waypoints or direct-to destinations. The device includes an SD™ card slot for easy updates and expansions; easily keep track of the databases on your aera through flyGarmin, our online manager that helps you update, manage and purchase the latest aviation data for your Garmin device.

Online Jeppeson NavData WAAS enabled SafeTaxi


Physical and Performance:
Unit dimensions, WxHxD: 5.1"W x 8.0"H x 1.5"D (13.0 x 20.3 x 3.8 cm)
Display size, WxH: 3.6"W x 6.0"H (9.1 x 15.2 cm); 7.0" diag (17.78 cm)
Display resolution, WxH: 480 x 800 pixels
Display type: dual-oriented, bright, color WVGA TFT with adjustable backlighting and selectable screen orientation
Weight: 26.4 ounces (748 g) with battery pack; 18.3 ounces (519 g) without battery pack; 12.7 ounces (361 g) RAM mount
Battery: rechargeable, replaceable Lithium-ion
Battery life: up to 3 hours with full backlight and GXM 40 connected (8 hours with 50% backlighting and XM connected)
Waterproof: no
Voltage range: 11-40
SBAS/WAAS receiver: high-sensitivity with WAAS position accuracy
IFR or VFR: VFR
Maps, Databases and Memory:
Basemap: yes
Navigation database (includes Jeppesen® data): yes
Types of Jeppesen data: full and ARTCC, FSS frequencies and final approach waypoints
Navigation database coverage areas: Americas
Preloaded Terrain database: yes
Preloaded Obstacle database: yes (U.S. and Europe only)
Preloaded SafeTaxi™ airport diagrams: yes (U.S. only)
Preloaded AOPA Airport Directory: yes (U.S. only)
Preloaded Garmin FliteCharts®: yes (U.S. only)
Preloaded low & high altitude enroute airways: yes
Preloaded private airports: yes (U.S. only)
Preloaded street maps: no
Ability to add maps: yes
Accepts data cards: yes (SD cards)
Built-in memory: internal solid state
Waypoints/favorites/locations: 3,000
Routes: 50
Features and Benefits:
Moving map: yes
Patented panel page: yes
HSI (GPS-based): yes
IFR map mode: yes
Traffic Information Services (TIS) alerts compatible: yes
Audible terrain alerts: yes
Terrain resolution: standard
Smart Airspace Feature (generates and displays altitude-sensitive alerts): yes
Automatic logbook: yes
Separate serial and USB interfaces: yes
Voice prompts (e.g. "Turn right in 500 ft."): no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): no
Lane assist (guides to proper lane for navigation): no
3-D map view: no
Bluetooth® wireless technology: no
Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe): no
Traffic compatible (routes around traffic with a receiver and subscription): no
Custom POIs (ability to add additional points of interest): no
XM WX Weather & Radio for U.S. & Canada compatible: no

What's in the Box:

  • aera 795
  • Yoke mount
  • DC cigarette adapter 12/24 volt cradle
  • Home A/C cradle dock
  • GA 25 remote antenna with suction cup mount
  • USB cable
  • Carrying case
  • Touchscreen cleaning cloth
  • Quick reference guide
  • Complimentary single database update
  • Pilot's Guide e-version (viewable on the document viewer)


Select an item below to expand the menu and show options.

Mounts

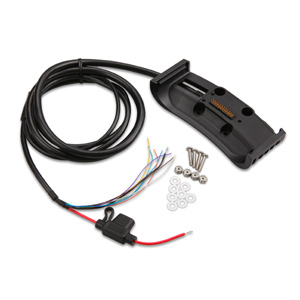

aera79X Aviation Mount, Bare wires
aera79X, Aviation Mount, bare wires
79X Aviation Mount, Power Cable
Aviation Mount with Power Cable
010-11756-01 010-11756-00

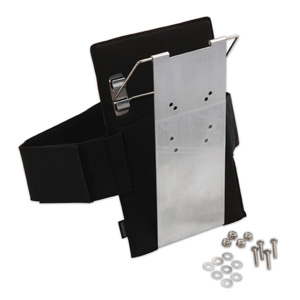

aera79X Lap Mount
Lap Mount

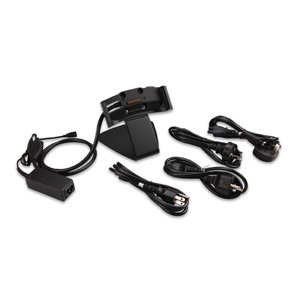

aera796 Home Dock with Cradle
Home Dock with Cradle
010-11756-05 010-11756-02

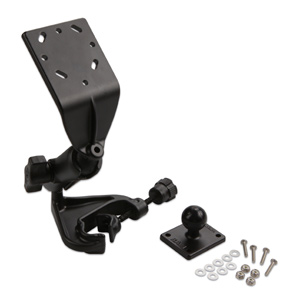

aera796 Yoke Mount
Yoke Mount
010-11756-06


Cables

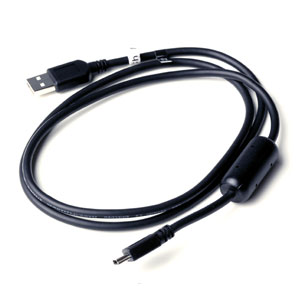

Mini USB Cable
Mini USB Cable
USB Adapter
USB Adapter
010-10723-01 010-11367-00

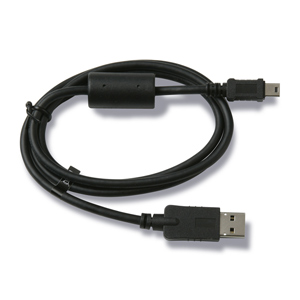

Mini USB Cable
Mini USB Cable
010-10723-15


Cases and Covers

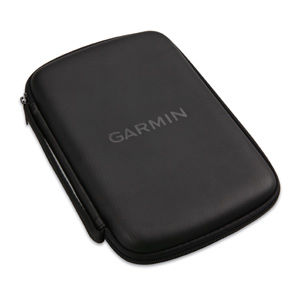

aera 796 GPS Case
Carrying Case
010-11756-03


Antennas

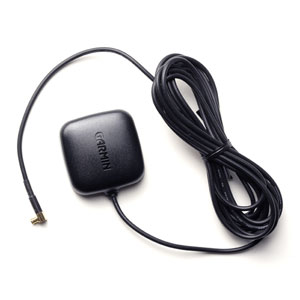

GA25 GPS Antenna
GA25MCX Remote Ant. (Low Profile)
ADS-B Antenna
010-10702-00 010-11825-00


GA27 GPS Antenna
GA27C Auto Antenna (Low Profile)
GA27 Extension Cable
EXT. Cable for GA27 Antenna
010-10052-05 010-10157-00


MCX-BNC Adapter
Adapter Cable (MCX to BNC)

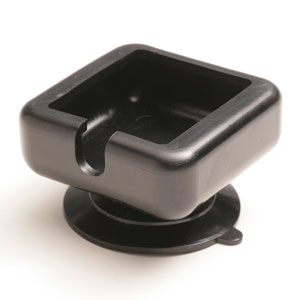

GA25 Suction Cup Mount
Suction Cup Mount for GA25 Ant.
010-10121-00 010-10871-00


Batteries

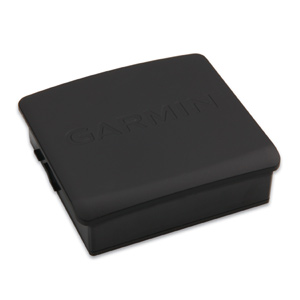

aera796 Battery Pack (Replacement)
Battery Pack Replacement
010-11756-04


Other

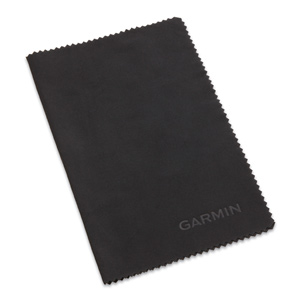

Cleaning Cloth
Cleaning Cloth
010-11755-00
$5.00


Watch the Garmin aera 796 Video to see what it can do for you!
