Dual Audio Panel with Built-in Bluetooth®

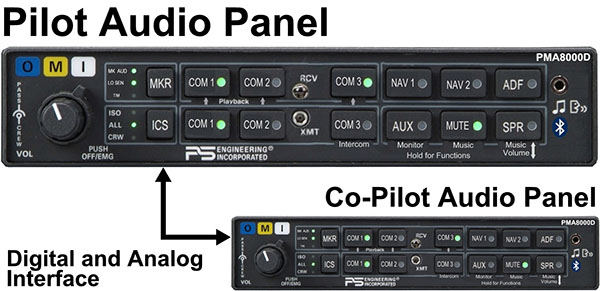

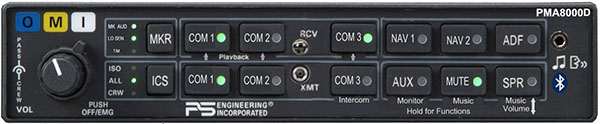

PS Engineering prides itself as the innovative leader in aircraft audio control systems, and the PMA8000D sets a new level of cockpit integration when it comes to the more complex aircraft that require independent audio panel control.
The PMA8000D is a ship set of two. With digital interface control, the pilot is always in control while allowing the copilot to off load not only radio communications, but also allow access to the passengers without interrupting the pilot.
There can never be any "strange states" because the intelligence that is built into the systems prevents this from occurring.
With two independent Bluetooth® interfaces, any one of a number of configurations will allow distribution of telephone and music.
And like all of our PMA8000 series, there are front panel configuration that allows both the pilot and copilot to configure the intercom to best suite the needs of the cockpit crew and passengers.
| Audio Selector Specifications: | |
| Audio Panel/Marker Beacon: | C50, C35d, Class A |
| Applicable Documents: | RTCA/DO-214 RTCA/DO-143, DO-160D,DO-178B,DO-254 |
| Environmental Qualifications: | A1D1CABSMXXXXXX ZBABATBXXE2XXX |
| Dimensions: | H: 1.3 in W: 6.25 in D 7.15 in |
| Weight: | 1.34 lb. (0.61 kg) |
| Voltage: | 11 to 33 VDC |
| Maximum Current: | 2.5 Amp (CB: 5A pull-type) |
| Selector input impedance: | 510 Ohms |
| Input Isolation: | -60 dB (min.) |
| Speaker Muting: | -60 dB (min.) |
| Speaker Power 14VDC/28VDC: | 3 Watts/10 Watts |
| Receiver Inputs: | 9 (Com 1,2,TEL,Nav 1,2, ADF, MKR, AUX, DME) |
| Unswitched Inputs: | 5 (including front jack) |
| Transmitter Selections: | 4 (Com 1, Com 2, TEL,Com1/2) |
| Speaker Impedance: | 4 Ohms |
| Headphone Impedance: | 150 – 1000 Ohms |
| Headphone Output: | 38 mW, no clipping <1% THD |
| Intercom Specifications: | |
| Intercom Positions: | 6 places (with IntelliVox® circuits) |
| Music Inputs: | 2, (Independent, Stereo) |
| Music Muting: | >-30 dB "Soft Mute" |
| Distortion: | <1% THD @ 38 mW into 150W |
| Mic Freq. Response, 3 dB: | 300 Hz - 6000 Hz |
| Music Freq. Response, 3 dB: | 20 Hz – 20 kHz |
| Marker Beacon Specifications: | |
| Frequency: | 75 MHz Crystal Controlled |
| Sensitivity: Low: | 1000 Volts (Hard) (360 to 570 microV soft) |
| Sensitivity: High: | 200 Volts (Hard) (130 to 200 microV soft) |
| Selectivity: | -6 dB at ±10 kHz /-40 dB at ±120 kHz |
| External Lamp Output: | 7.5 (±4 VDC unloaded, at maximum brightness) VDC positive when active, max. current 125 mA |
| MM Sense: | Active high (4.5 ± 1.0VDC) |
