S-TEC/Cobham System 60-2 Auto Pilot

System 60-2 Auto Pilot





S-TEC System 60-2




  • Overview
  • System Features
  • Comparison
  • System Diagram


System 60-2 Auto Pilot Features and Functions

System Sixty-Two

  • Lighted 3" Turn Coordinator
  • 3 ATI Panel Mounted Auto Pilot Controller
  • Remote Roll and Pitch Computers
  • HDG Preselect & Hold (Heading System not included)
  • Altitude Hold with Altitude Trim
  • VOR/LOC/GS/REV/GPS Coupling with 3 Gain Levels
  • VOR/LOC/GS/REV/GPS Course Deviation and NAV Flag Warning
  • Vertical Speed Command
  • Pitch Trim Annunciation
  • Flight Director Compatible
  • Course Intercept Capability
    • NAV Mode
    • Dual Mode - HDG/NAV

AVAILABLE OPTIONS

  • DG/HSI Compatible
  • Single Cue Flight Director Interface Compatible
  • ST-360 Altitude Selector/Alerter System
  • Automatic or Manual Electric Pitch Trim (where STC'd)
  • GPSS Converter (ST-901 or equivalent)
  • Yaw Damper (where STC'd)

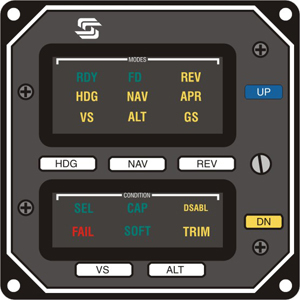

System 60-1 and 60-2 Auto Pilot Features of the Auto Pilot



System 50 Auto Pilot

  1. HDG (heading) Mode-Heading Preselect and Hold. When HDG and NAV activated simultaneously, enables dual mode intercept - autopilot operates in heading mode to automatically intercept and track selected course or localizer; at which point HDG extinguishes. **
  2. Pitch Modes. Include VS indicating vertical speed control has been selected, up and down; ALT, indicating altitude hold is engaged, capturing existing altitude when activated; and GS, indicating glideslope coupling is armed and/or active. *
  3. Mode Selector Buttons. For HDG (heading)**, NAV (tracking VOR/GPS en route), REV (LOC backcourse), VS (vertical speed) command*, and ALT (altitude) hold*.
  4. Annunciations. For RDY (autopilot ready), FD (flight director) active, and mode selected.
  5. NAV (coupled navigation) mode. Automatic intercept and tracking of en route NAV signals (VOR/GPS). Intercept and gain levels annunciated by CAP and SOFT; CAP indicates course capture and initiation of tracking gain program, and SOFT indicates lower, less sensitive gain for en route tracking and smooth station passage. 3-level gain selection for NAV mode is automatic. When APR is lit (simultaneous with NAV), indicates high gain localizer mode for high sensitivity coupled approach. Flashing NAV or REV annunciates course deviation of 50% or more.
  6. Up/Down Multi-Function Lighted Buttons. Annunciates out-of-pitch-trim condition when trim illuminates; buttons command vertical speed changes when VS activated. Altitude can be modified (trimmed) in increments using the UP/DN command button, when altitude hold is engaged.*

* System Sixty-Two (60-2) Features and Functions
** Operational if heading system is installed and active.




S-TEC Single Axis Auto Pilot Comparisons

Product Comparison
System 60-2
Roll Features and Functions
Turn Coordinator
standard
standard
standard
Turn Coordinator / Roll Computer
Turn Command Knob
Heading Select and Hold (requires heading system)
standard
standard
standard
Navigation / Approach Tracker (track only)
Navigation / Approach Coupler (intercept and track)
standard
standard
standard
Backcourse Mode
standard
standard
standard
Dual Mode Intercept HDG / NAV
standard
standard
standard
Course Deviation / NAV Flag Warning
standard
standard
standard
Navigation / Approach Gain Select
Navigation / Approach Gain Automatic
standard
standard
standard
GPSS
standard
optional
optional
Pitch Features and Functions
Altitude Hold
standard
standard
standard
Altitude Trim
standard
standard
standard
Trim Annunciation
standard
standard
standard
Vertical Speed Command
standard
standard
standard
Digital Vertical Speed Command
standard
Glideslope Coupler
standard
standard
standard
Altitude Selector / Alerter
optional
optional
optional
Manual Electric Trim (where STC'd)
optional
optional
Automatic Electric Trim (where STC'd)
optional
optional
standard
Other Features and Functions
Turn Coordinator / Mode Selector
3 ATI Panel Mounted Mode Selector
standard
Radio Stack Mounted Mode Selector / Computer
standard
Pedestal Mount Mode Selector
standard
Control Wheel Mode Select
Control Wheel Steering
standard
Remote Computer
standard
standard
Remote Annunciator
optional
standard
Yaw Damper (where STC'd)
optional
optional
optional



System 60-2 Auto Pilot Components
